Staco Variable Transformer Portable 1000/1200/1500/2500 Series

DVM and XDVM Models Include Digital Voltmeters, DAM and XDAM Models Include Digital Ammeters.

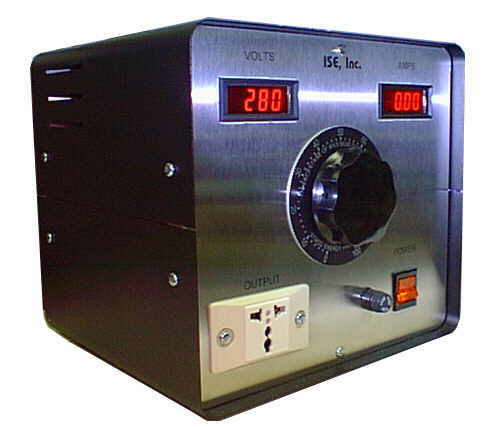

DVAM and XDVAM Models Include Digital Volt and Amp Meters.



3PN1010B, 3PN1210B, 3PN1020B, 3PN1220B, 3PN1020B-MOD

3PN1510B, 3PN1520B, 3PN1520B-MOD
3PN10xx / 3PN12xx  Series      3PN15xx Series
3PN2210B 3PN2520B
3PN2210B           3PN2520B



All include cord, plug, receptacle, lighted switch, fuse and enclosure.

Return To Variable Transformer Selector

Goto Smaller Portable Variable Transformers

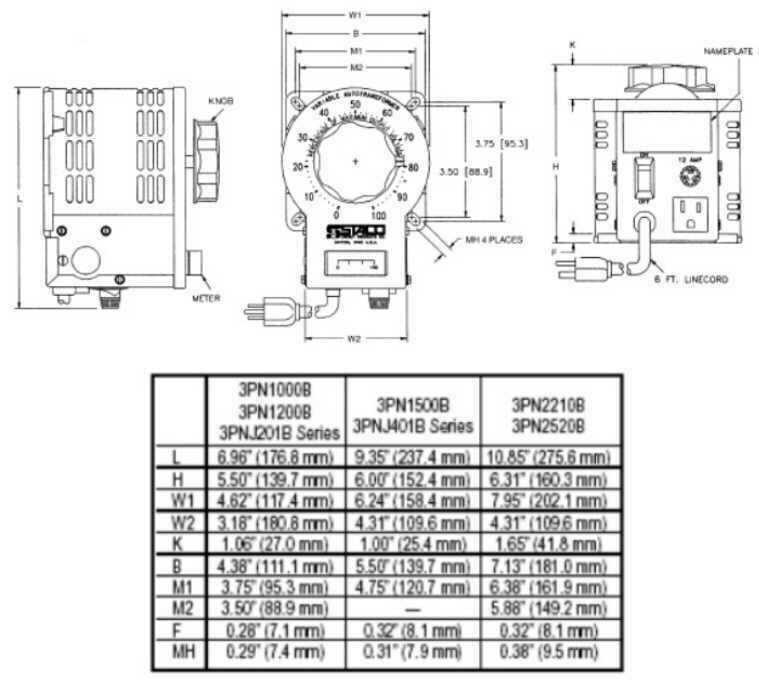

Portable Series Variac Drawings

Manually Operated P/N

Input

Volts

Phase Hertz

Output

Volts

Constant

Current

Rating

Features



3PN1010B
120 1 PH 50/60, 400 0-140 10A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN1010B-DVM
120 1 PH 50/60, 400 0-140 10A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter

3PN1010B-DAM
120 1 PH 50/60, 400 0-140 10A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter

3PN1010B-DVAM
120 1 PH 50/60, 400 0-140 10A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter, Digital Ammeter

3PN1210B
120 1 PH 60, 400 0-120 12A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN1210B-DVM
120 1 PH 60, 400 0-120 12A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter,

3PN1210B-DAM
120 1 PH 60, 400 0-120 12A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter,

3PN1210B-DVAM
120 1 PH 60, 400 0-120 12A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter, Digital Ammeter

3PN1510B
120 1 PH 50/60 0-140 15A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN1510B-DVM
120 1 PH 50/60 0-140 15A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter

3PN1510B-DAM
120 1 PH 50/60 0-140 15A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter

3PN1510B-DVAM
120 1 PH 50/60 0-140 15A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Volt Meter, Digital Ammeter

3PN2210B
120 1 PH 50/60 0-140 22A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN2210B-DVM
120 1 PH 50/60 0-140 22A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter

3PN2210B-DAM
120 1 PH 50/60 0-140 22A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter

3PN1020B
240 1 PH 50/60, 400 0-280 3.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN1020B-DVM
240 1 PH 50/60, 400 0-280 3.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter

3PN1020B-DAM

240 1 PH 50/60, 400 0-280 3.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter

3PN1020B-DVAM
240 1 PH 50/60, 400 0-280 3.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter, Digital Ammeter

3PN1220B
240 1 PH 60, 400 0-240 5.0A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN1220B-DVM
240 1 PH 60, 400 0-240 5.0A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter

3PN1220B-DAM
240 1 PH 60, 400 0-240 5.0A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter

3PN1220B-DVAM
240 1 PH 60, 400 0-240 5.0A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter, Digital Ammeter

3PN1520B
240 1 PH 50/60 0-280 9.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN1520B-DVM
240 1 PH 50/60 0-280 9.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter

3PN1520B-DAM
240 1 PH 50/60 0-280 9.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter

3PN1520B-DVAM
240 1 PH 50/60 0-280 9.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter, Digital Ammeter

3PN2520B
240 1 PH 50/60 0-280 10A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN2520B-DVM
240 1 PH 50/60 0-280 10A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter

3PN2520B-DAM
240 1 PH 50/60 0-280 10A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter




Portable Voltage Doublers - 120V Input / 0-280V Output

Manually Operated P/N

Input

Volts

Phase Hertz

Output

Volts

Current

Rating to 150V

Current

Rating at 215V

Current

Rating at 280V

Features

3PN1020B-MOD
120 1 PH 50/60, 400 0-280 3.5A 2.0A 1.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN1020B-XDVM
120 1 PH 50/60, 400 0-280 3.5A 2.0A 1.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter

3PN1020B-XDAM
120 1 PH 50/60, 400 0-280 3.5A 2.0A 1.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter

3PN1020B-XDVAM
120 1 PH 50/60, 400 0-280 3.5A 2.0A 1.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter, Digital Ammeter

3PN1520B-MOD
120 1 PH 50/60 0-280 9.5A 5.4A 4.1A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN1520B-XDVM

120 1 PH 50/60 0-280 9.5A 5.4A 4.1A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter

3PN1520B-XDAM
120 1 PH 50/60 0-280 9.5A 5.4A 4.1A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter

3PN1520B-XDVAM
120 1 PH 50/60 0-280 9.5A 5.4A 4.1A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter, Digital Ammeter

3PN2520B-MOD
120 1 PH 50/60 0-280 10A 5.7A 4.4A Case, Cord, Plug, Switch, Light, Fuse, Receptacle

3PN2520B-XDVM
120 1 PH 50/60 0-280 10A 5.7A 4.4A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Voltmeter

3PN2520B-XDAM
120 1 PH 50/60 0-280 10A 5.7A 4.4A Case, Cord, Plug, Switch, Light, Fuse, Receptacle, Digital Ammeter

Portable Series Variac Drawings

Plugs and Receptacles on Portable Transformers

120V input / 0-120 or 0-140V output 240V input 0-240 or 0-280V output
Input Plug Output Receptacle Input Plug Output Receptacle


120V input / 0-280V output (Voltage Doublers)



All DVAM models include a universal output receptacle that accepts virtually any common US or international plugs.

Input Plug Output Receptacle





Optional Knob Stop Kit for 3PN1xxx Transformers
