Staco Variable Transformer 1000 and 1200 Series

STACO’s 1010B variable transformer coil operates on 120 volts and is rated for constant current of 10 amperes. The 1020B variable transformer coil operates on 120 or 240 volts and has a constant current rating of up to 3.5 amperes. Both variable transformer types include coil tapping arrangements allow for 0 to input line voltage or 17% above line voltage. The 1020 taps allow the unit to double the input voltage if desired.

Staco 1210B variable transformer coil operates on 120 volts and is rated for constant current of 12 amperes. The 1220B variable transformer coil operates on  240 volts and has a constant current rating of up to 5 amperes. Both variable transformer types include coil tapping arrangements allow for 0 to input line voltage or 17% above line voltage.

All these variable transformers may be operated from 50-1500 hertz with no reduction in output current.

Uncased models have the shaft extending from the base end. This shaft is fully adjustable and can be extended from either end for general utility mounting. Cased styles, which have a "CT" suffix, feature the protective cover over the coil assembly and a terminal box cover with knock-outs to accept conduit.

Motor driven variable transformer units are available in single, two and three ganged variable transformer assemblies; cased or uncased styles as identified by the prefix "M" in the type number. If a motor driven model is ordered, be sure to prefix the part number with the desired travel time from (0 to maximum output) of 5,15, 30, or 60 seconds. The synchronous motor is designed for operation on 120 volts, 50/60 hertz single phase lines and draws approximately 0.3 amperes.  Portable models with case, cord, receptacle, switch, light and fuse are available.  Goto Portable Variable Transformer Page for details.

Goto Selector for other sizes

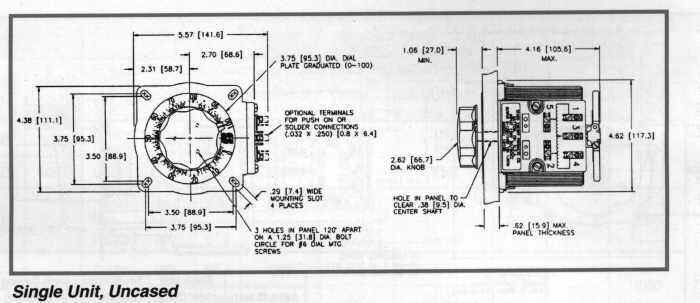

Open Style

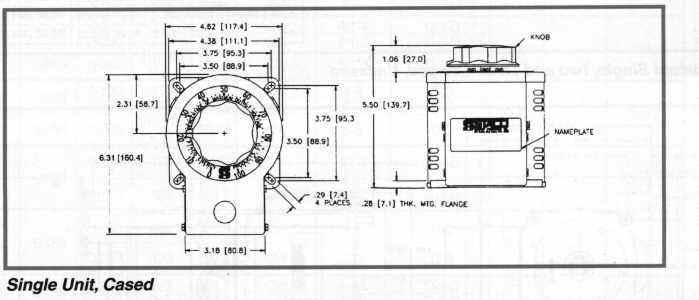

Cased "CT" Version

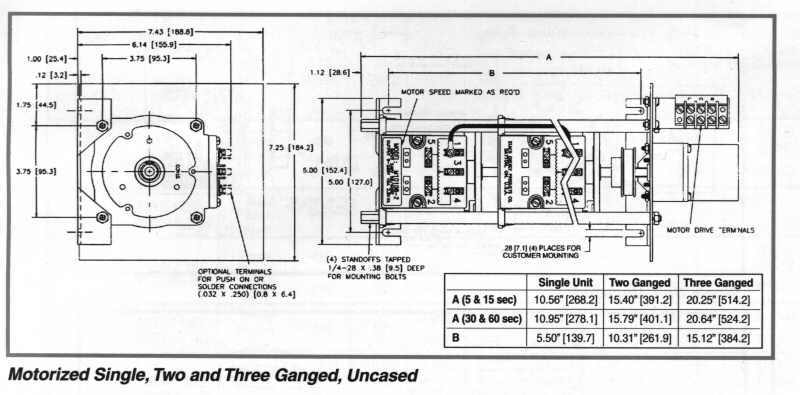

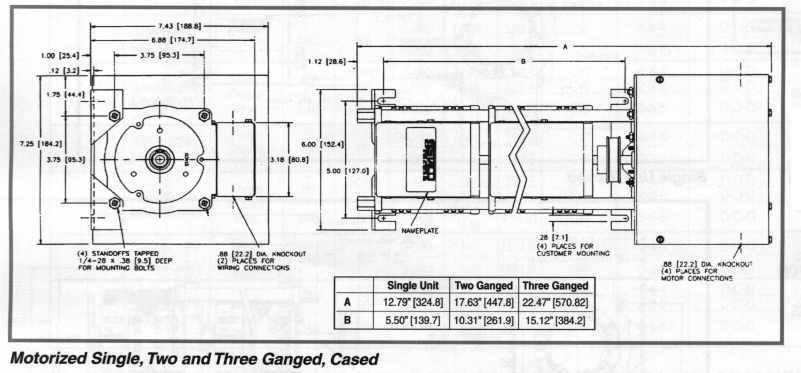

Motorized Version




1010 Wiring


1020/1220 Wiring

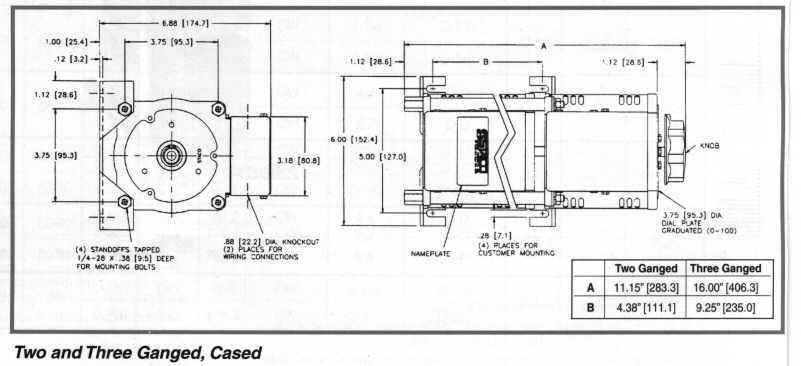

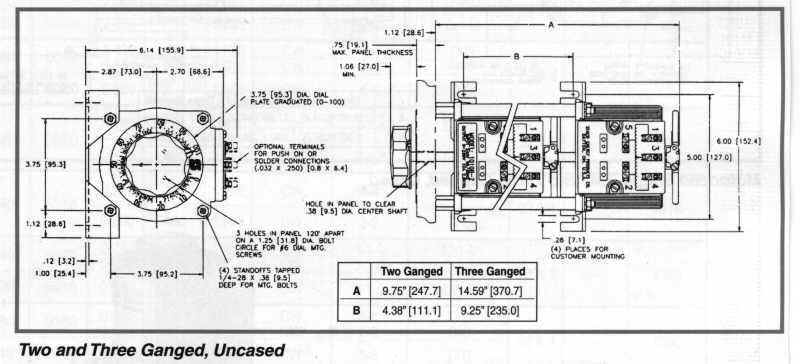

1000 Series Variac Drawings   1200 Series Variac Drawings



120V Single Phase Input with up to 140V Outputs

Manually Operated P/N Motor Driven P/N

Input

Volts

Phase Hertz

Output

Volts

Constant

Current

Rating

Constant

Impedance

Rating

Features
1010B M1010B 120 1 PH 50/60 0-120 10A 13A Add 'CT' Suffix for Cased version
0-140 10A
3PN1010B   120 1 PH 50/60 0-140 10A   Case, Cord, Plug, Switch, Light, Fuse, Receptacle
1210B M1210B 120 1 PH 60 0-120 12A 15A Add 'CT' Suffix for Cased version
3PN1210B   120 1 PH 50/60 0-120 12A   Case, Cord, Plug, Switch, Light, Fuse, Receptacle



240V Single Phase Input with up to 280V Outputs

Manually Operated P/N Motor Driven P/N

Input

Volts

Phase Hertz

Output

Volts

Constant

Current

Rating

Constant

Impedance

Rating

Features
1020B M1020B 240 1 PH 50/60 0-240 3.5A 5.0A Add 'CT' Suffix for Cased version
0-280 3.5A
3PN1020B   240 1 PH 50/60 0-280 3.5A   Case, Cord, Plug, Switch, Light, Fuse, Receptacle

1220B M1220B 240 1 PH 60 0-240 5.0A 7.0A Add 'CT' Suffix for Cased version
3PN1220B   240 1 PH 60 0-240 5.0A   Case, Cord, Plug, Switch, Light, Fuse, Receptacle




480V Single Phase Input with up to 560V Outputs

Manually Operated P/N Motor Driven P/N

Input

Volts

Phase Hertz

Output

Volts

Constant

Current

Rating

Constant

Impedance

Rating

Features
1020B-2 M1020B-2 480 1 PH 50/60 0-480 3.5A 5.0A 2-Ganged Unit; Add 'CT' Suffix for Cased version
0-560 3.5A
1220B-2 M1220B-2 480 1 PH 60 0-480 5.0A 7.0A 2-Ganged Unit; Add 'CT' Suffix for Cased version



Single Phase Voltage Doublers 120V Input 0-280V Outputs

Manually Operated P/N Motor Driven P/N

Input

Volts

Phase Hertz

Output

Volts

Current

Rating to 150V

Current

Rating at 215V

Current

Rating at 280V

Features
1020B M1020B 120 1 PH 50/60 0-280 3.5A 2.0A 1.5A Add 'CT' Suffix for Cased version
3PN1020B-MOD 120 1 PH 50/60 0-280 3.5A 2.0A 1.5A Case, Cord, Plug, Switch, Light, Fuse, Receptacle



Single Phase Voltage Doublers 240V Input 0-560V Outputs

Manually Operated P/N Motor Driven P/N

Input

Volts

Phase Hertz

Output

Volts

Current

Rating to 300V

Current

Rating at 430V

Current

Rating at 560V

Features
1020B-2 M1020B-2 240 1 PH 50/60 0-560 3.5A 2.0A 1.5A 2-Ganged Unit, Add 'CT' Suffix for Cased version



240V Three Phase Wye Input with up to 280V Outputs

Manually Operated P/N Motor Driven P/N

Input

Volts

Phase Hertz

Output

Volts

Constant

Current

Rating

Constant

Impedance

Rating

Features
1010B-3 M1010B-3 240 3 PH 50/60 0-240 10A 13A 3-Ganged Unit; Add 'CT' Suffix for Cased version
60 0-280 10A
1210B-3 M1210B-3 240 3 PH 60 0-240 12A 15A 3-Ganged Unit; Add 'CT' Suffix for Cased version



480V Three Phase Input 0-480/560V Output

Manually Operated P/N Motor Driven P/N

Input

Volts

Phase Hertz

Output

Volts

Constant

Current

Rating

Constant

Impedance

Rating

Features
1020B-3 M1020B-3 480 3 PH 50/60 0-480 3.5A 5.0A 3-Ganged Unit; Add 'CT' Suffix for Cased version
60 0-560 3.5A
1220B-3 M1220B-3 480 3 PH 60 0-480 5.0A 7.0A 3-Ganged Unit; Add 'CT' Suffix for Cased version



Three Phase Wye Phase Voltage Doublers 240V Input 0-560V Outputs

Manually Operated P/N Motor Driven P/N

Input

Volts

Phase Hertz

Output

Volts

Current

Rating to 300V

Current

Rating at 430V

Current

Rating at 560V

Features
1020B-3 M1020B-3 240 3 PH 60 0-560 3.5A 2.0A 1.5A 3-Ganged Unit, Add 'CT' Suffix for Cased version

1000 Series Variac Drawings   1200 Series Variac Drawings



request.jpg (10520 bytes)Click on this link to request further variable transformer information

Important Notes:

CURRENT RATING TERMINOLOGY: To permit maximum utilization of STACO Variable Transformers, output ratings are given for both constant current and constant impedance loads. All current ratings are based on continuous use at ambient temperatures to 122 F (50 C).  Use derating curve for higher ambients.  Short duration overloads to 10 times transformer rating are possible.  See graph for acceptable limits.

CONSTANT CURRENT RATING: Output current that can be carried regardless of output voltage setting. (Reduce, for output above 125% of input voltage, on voltage doubler connection. See Graph)

CONSTANT IMPEDANCE RATING: Output current that can be carried with loads such as incandescent lamps or resistance heaters in which the current drawn is approximately proportional to the applied voltage, increasing to maximum current at line voltage. This rating applies only to applications where maximum output voltage is limited to line voltage.

THREE PHASE CONNECTED TRANSFORMERS: If ganged units are used in a system that ordinarily has a common neutral or ground between source and load, the neutral or ground must be connected to the common terminals of the variable transformer assembly. If the system has no neutral, the load must be balanced or the transformers will be damaged.

OPERATION AT HIGHER FREQUENCIES: All Staco variable transformers are designed for operation at 60 or 50/60 Hz.  Most models can also properly operate with input frequencies to 2000 Hz.  Some models output ratings must be derated at higher frequencies. See derating table for details.
